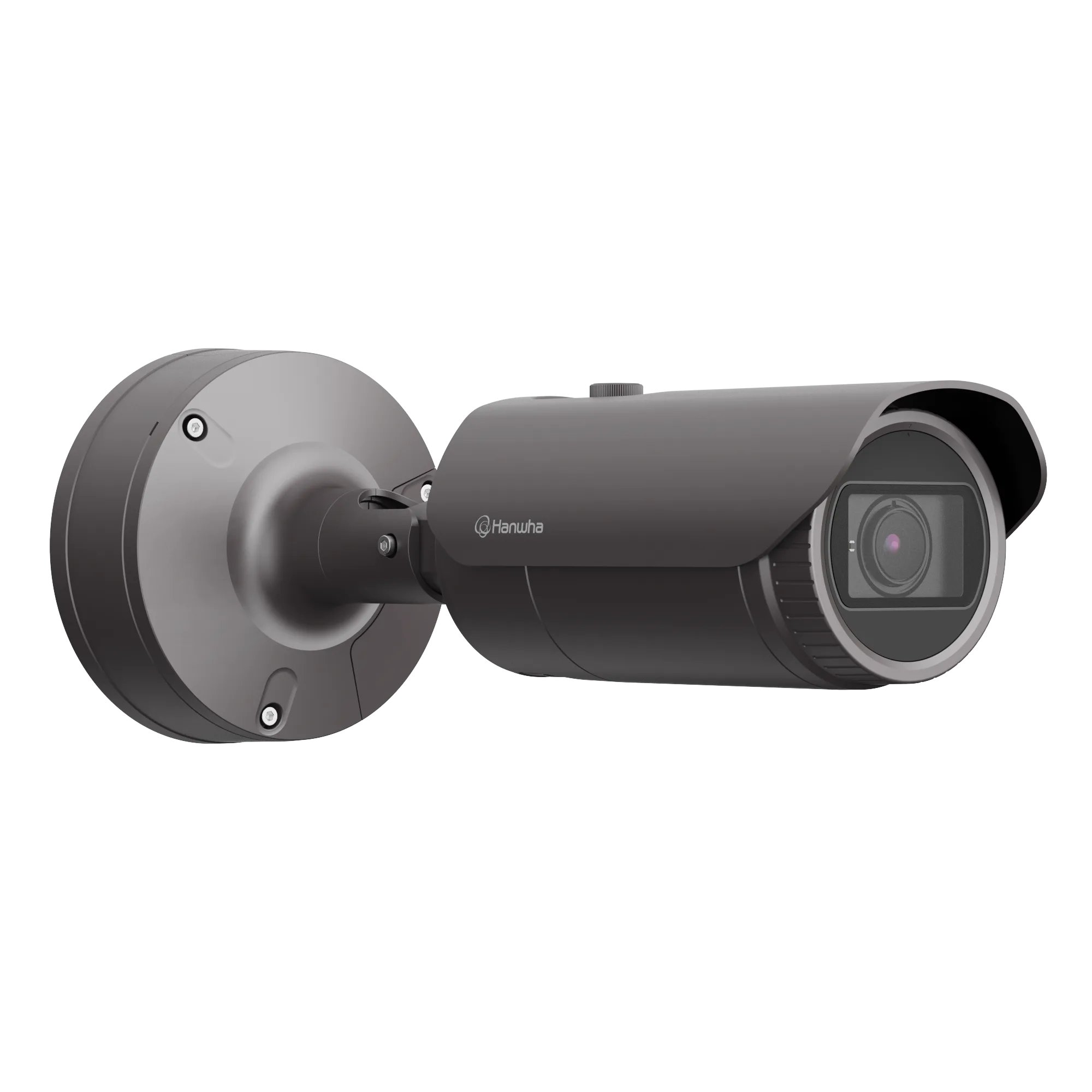

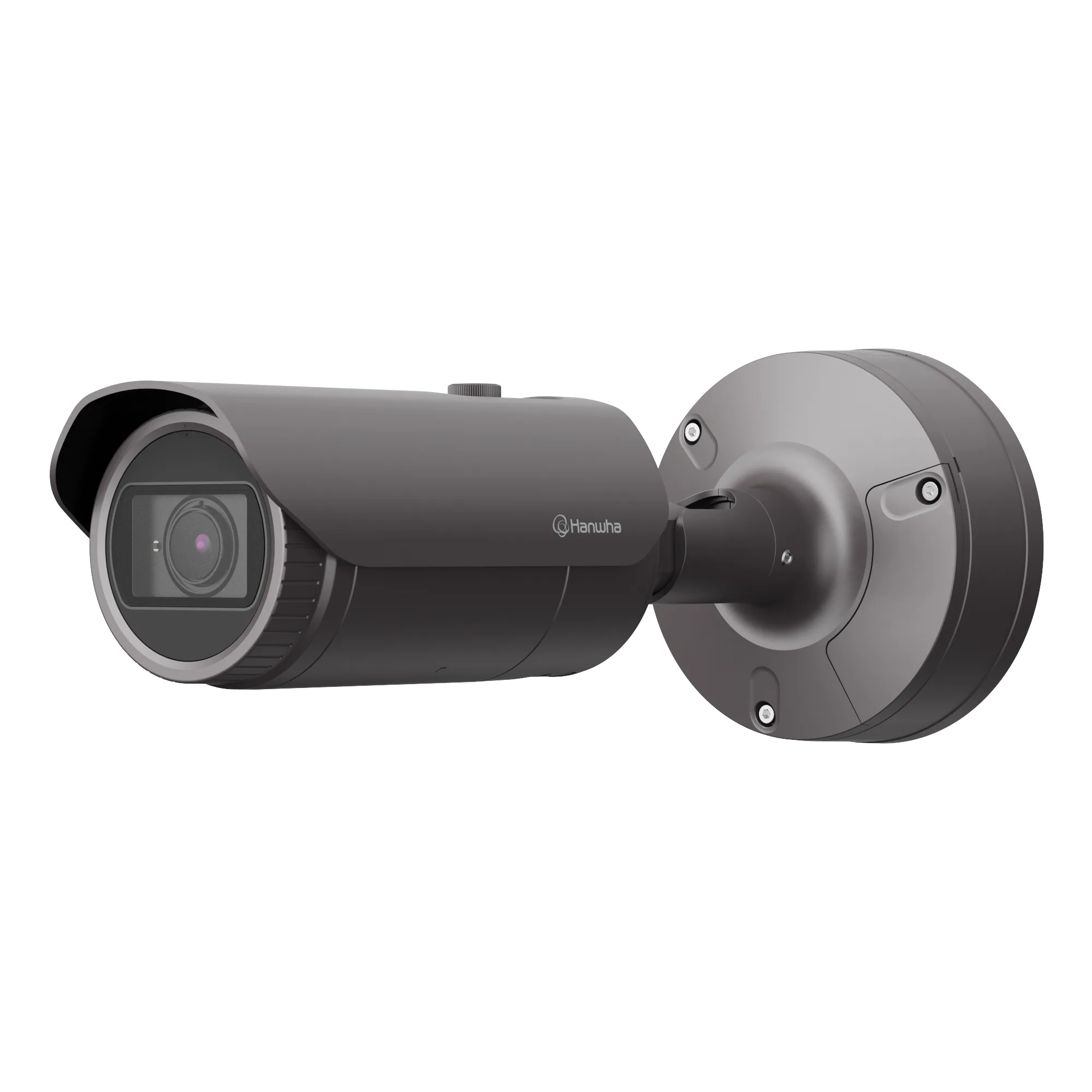

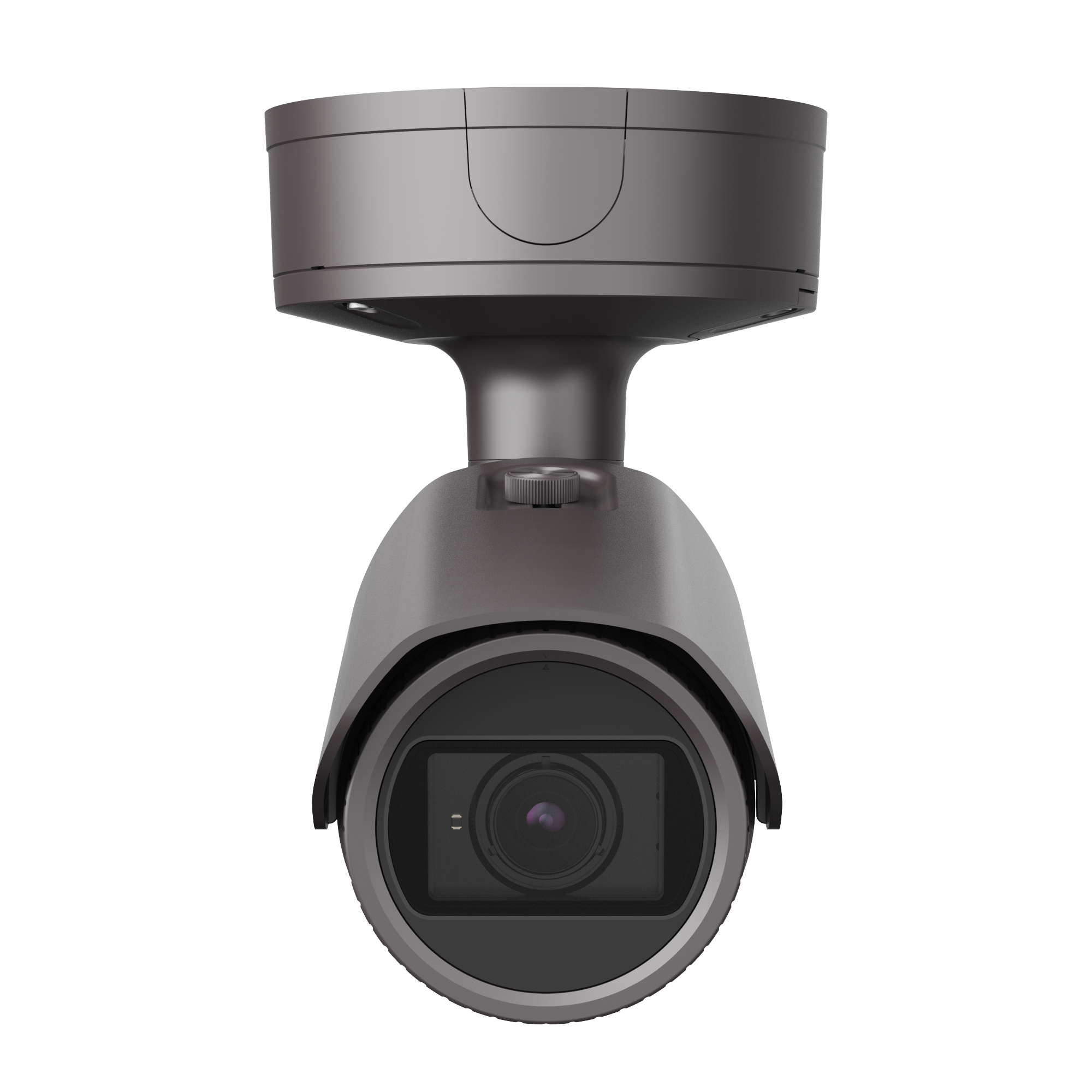

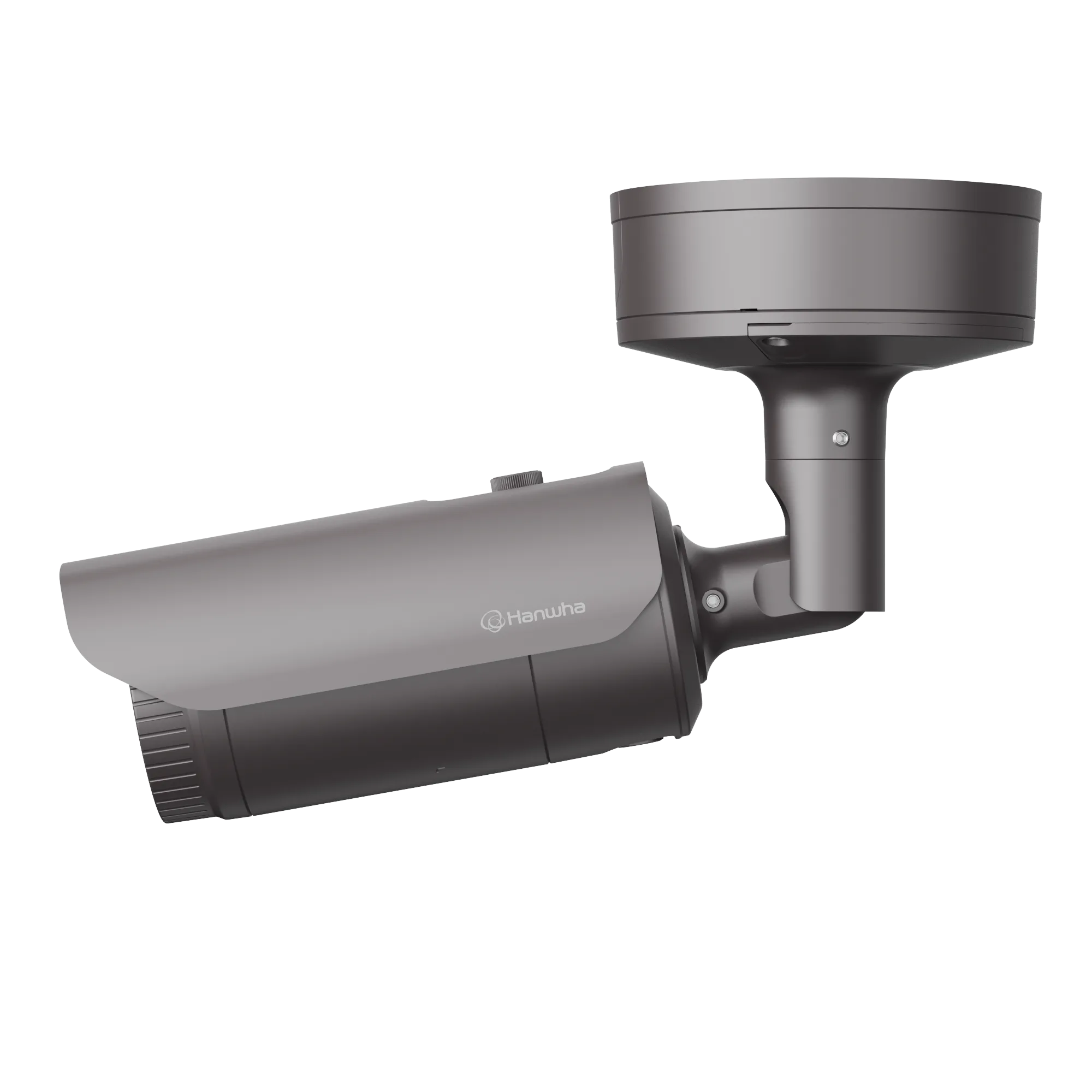

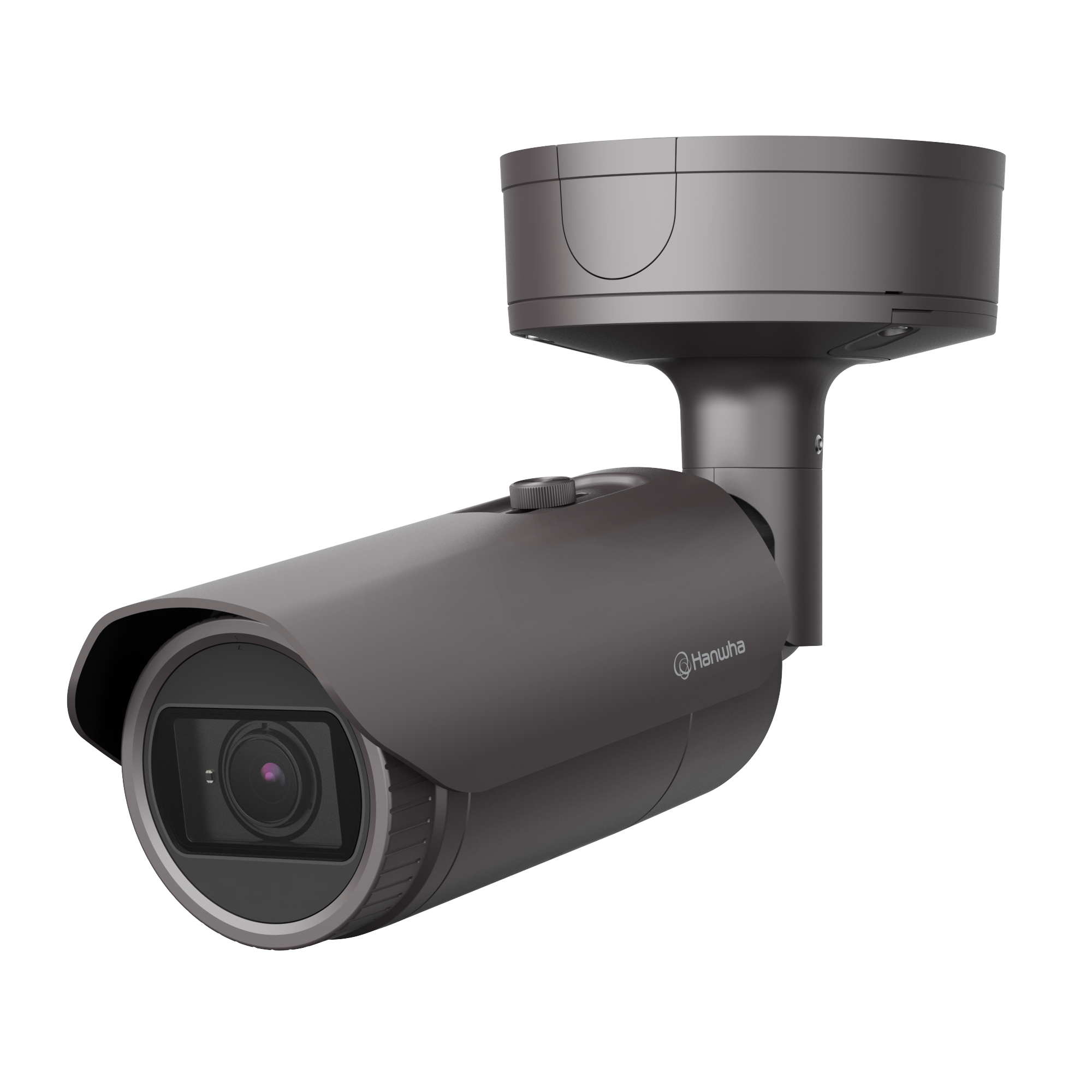

PNO-A9081RLP — 4K AI IR Bullet Camera with Wisenet Road AI application and SD card

Ana Özellikler

All in one solution with ANPR, Make/Model/Colour Recognition (MMCR) and vehicle classification analytics, pre-installed and licensed
Edge-based negating need for server
Ideal for city traffic surveillance with coverage of up to 1 traffic lane at speeds of up to 70kmh (45mph)
Access control and licence plate list management for stop and go installations such as car parks and toll roads
Web-based user-friendly interface, no need for a dedicated client software
Search smarter and quicker with multiple inputs
Gain insights into the road usage by vehicle type, make and model
Choose from key Integrated VMS such as Genetec, Milestone and WAVE
Installation aids such as Wi-Fi dongle (optional), CVBS output and in-app licence plate alignment assistant

Video

Görüntüleme Aygıtı – Boyut	1/1.8″
Görüntüleme Aygıtı – Tür	CMOS
Çözünürlük	3840×2160, 3072×1728, 2688×1520, 2592×1944, 2560×1440, 2048×1536, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360
En Fazla Kare hızı – H.265/H.264	30fps/25fps(60Hz/50Hz)
En Fazla Kare hızı – MJPEG	30fps
Min. Aydınlatma (Lüks) – Renk(1/30sn, 30IRE)	0.05
Min. Aydınlatma (Lüks) – SB(1/30sn, 30IRE)	0.005
Video Çıkışı	CVBS: 1.0 Vp-p / 75Ω composite for installation, USB: Micro USB Type B

Lens

Odak Uzunluğu (mm)	4.5~10
Yakınlaştırma Oranı – Optik	2.2x
Maks. Diyafram Açıklığı Oranı (F numarası) – Geniş	1.6
Maks. Diyafram Açıklığı Oranı (F numarası) – Tele	2.65
Açısal Görüş Alanı – Yatay	101.4°~45.5°
Açısal Görüş Alanı – Dikey	53.6°~25.5°
Açısal Görüş Alanı – Diyagonal	120.7°~52.3°
Min. Nesne Mesafesi	0.5m(1.64ft)
Odak Kontrolü	Simple focus
Lens Tipi	P iris(IR corrected)

İşletimsel

Gündüz ve Gece	Auto(ICR)
Arka Işık Dengeleme	BLC, WDR, SSDR
Geniş Dinamik Aralık (dB)	120
Dijital Gürültü Azaltma	SSNRⅤ
Dijital Görüntü Sabitleme	Support(built-in gyro sensor)
Hareket Algılama – Miktar	8ea
Hareket Algılama – Şekil	8point Polygonal zones
Gizlilik Maskesi – Miktar	6ea
Gizlilik Maskesi – Şekil	Rectangular zones
Gizlilik Maskesi – Renk / Seçenek	Gray, Black, White
Kazanç Kontrolü	Low, Middle, High
Beyaz Dengesi	ATW, AWC, Manual, Indoor, Outdoor
LDC	Support
Elektronik Obtüratör – Mod	Minimum, Maximum, Anti flicker
Elektronik Obtüratör – Hız Aralığı	1/5~1/12,000sec
Video Döndürme	Flip, Mirror, Hallway view(90°/270°)
Alarm Arayüzü – Giriş/Çıkış	Input 1ea, Output 1ea
Alarm Arayüzü – Diğer	12VDC output
Alarm Tetikleyiciler	Analytics, Network disconnect, Alarm input
Alarm Tetikleyici Gerçekleştiğinde Alarm Olayları	File upload(image): e-mail/FTP, Notification: e-mail, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback
Ses Girişi	Selectable(mic in/line in)
Ses Çıkışı	Line out
Işık Türü	IR LED
Işık Görüntülenebilir Uzunluğu – IR	WiseIR 30m(98.42ft)
IR Dalga Boyu	850nm

Analiz Araçları

Analiz Araçları Olayları – Normal

Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Shock detection

Ağ

Ethernet	Metal shielded RJ-45(10/100/1000BASE-T)
Video Sıkıştırma	H.265/H.264: Main/High, MJPEG
Ses Sıkıştırma	G.711 u-law /G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz
Smart Codec	Manual, WiseStreamⅡ
Bit Hızı Kontrolü	H.265/H.264: CBR or VBR, MJPEG: VBR
Yayın akışı – Unicast	Up to 6 users
Yayın akışı – Multicast	Support
Yayın akışı – Çoklu Yayın Akışı	Up to 3 profiles
Protokol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast)
Uygulama Programlama Arayüzü – ONVIF	S, G, T
Uygulama Programlama Arayüzü – Diğer	SUNAPI(HTTP API)
Direkt Bulut Bağlantısı	Support

Güvenlik

İS / Yerleşik Yazılım Koruması	Encrypted firmware, Secure boot, Signed firmware
Kullanıcı kimlik doğrulaması	Digest authentication, Prevent brute-force attack
Ağ kimlik doğrulaması	IEEE 802.1X(EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2)
Güvenli İletişim	HTTPS, WSS(WebSocket Secure), SRTP
Erişim Denetimi	IP-based access control
Veri Koruması	Encryption credentials, Encrypt compress for live recording file export
Denetim	Access / System / Event Log management
Aygıt Kimliği	Device certificate(Hanwha Vision Root CA)
Güvenli Depolama	SDcard partition encrypt(AES-256)

Genel

Bellek – RAM	4GB
Bellek – Flaş	512MB
Kenar Depolama – Mikro SD/SDHC/SDXC	1slot (32GB card preinstalled)

Çevresel ve Elektriksel

Çalışma Koşulu – Sıcaklık	-40°C~+55°C(-40°F~+131°F)
Çalışma Koşulu – Nemlilik	0~90% RH(non-condensing)
Çalışma Koşulu – Diğer	Start up should be done at above -30°C
Depolama Koşulu – Sıcaklık	-50°C~+60°C(-58°F~+140°F)
Depolama Koşulu – Nemlilik	0~90% RH(non-condensing)
Giriş Voltajı	PoE+(IEEE802.3at, Class4), 12VDC
Güç Tüketimi – PoE	Max 20.00W, typical 17.00W
Güç Tüketimi – 12VDC	Max 18.00W, typical 16.00W

Mekanik

Renk	Dark grey
Malzeme	Aluminum
Ürün Boyutları	Ø91.0×368.6mm(3.58″x14.51″)(Without sunshield)
Ürün Ağırlığı	2.48kg(5.47lb)

Wisenet Road AI LPR/ANPR/MMCR

App Type	CNN (Convolutional Neural Network) AI
LPR Usage Condition – NA	Community Traffic, Parking Application
LPR Usage Condition – EU	Community Traffic, Parking Application
Speed Description by Region – NA	Low to Moderate Speed
Speed Description by Region – EU	Low to Moderate Speed
Lane Coverage_NA – 1 Lane	3.6m/12ft wide (with built in IR)
Lane Coverage_NA – 2 Lanes	8.1m/26ft wide (with built in IR)
Lane Coverage_EU – 1 Lane	3.6m/12ft wide (with built in IR)
Lane Coverage_EU – 2 Lanes	8.1m/26ft wide (with built in IR)
Lane Coverage_EU – 3 Lanes	16.2m/53ft wide (with built in IR)
Plate Capture Resolution_NA – 1 Lane	4K
Plate Capture Resolution_NA – 2 Lanes	4K
Plate Capture Resolution_EU – 1 Lane	4K
Plate Capture Resolution_EU – 2 Lanes	4K
Plate Capture Resolution_EU – 3 Lanes	4K
Speed Limit_NA – 1 Lane	Up to 90km/h (56mph)
Speed Limit_NA – 2 Lanes	Up to 70km/h (43mph)
Speed Limit_EU – 1 Lane	Up to 110km/h (68mph)
Speed Limit_EU – 2 Lanes	Up to 100km/h (62mph)
Speed Limit_EU – 3 Lanes	Up to 45km/h (28mph)
Min. Forward Distance_NA – 1 Lane	6m (19.7ft)
Min. Forward Distance_NA – 2 Lanes	8m (26.2ft)
Min. Forward Distance_EU – 1 Lane	6m (19.7ft)
Min. Forward Distance_EU – 2 Lanes	6m (19.7ft)
Min. Forward Distance_EU – 3 Lanes	9m (29.5ft)
Max. Forward Distance_NA – 1 Lane	15m (49.2ft)
Max. Forward Distance_NA – 2 Lanes	15m (49.2ft)
Max. Forward Distance_EU – 1 Lane	20m (65.6ft)
Max. Forward Distance_EU – 2 Lanes	20m (65.6ft)
Max. Forward Distance_EU – 3 Lanes	20m (65.6ft)
Max. Horizontal Angle by Region – NA	30° for highway, 45° for traffic observation
Max. Horizontal Angle by Region – EU	30° for highway, 45° for traffic observation
Max. Vertical Angle by Region – NA	30°
Max. Vertical Angle by Region – EU	30°
Araç Tanıma	Make: 100+ makes Model: 4700+ models Color: 11 colors
Mevcut Ülkeler	Albania, Armenia, Austria, Belarus, Belgium, Bosnia and Herzegovina, Bulgaria, Cyprus, Czechia, Denmark, Estonia, Finland, France, Greece, Germany, Hungary, Ireland, Iceland, Italy, Lithuania, Luxembourg, Latvia, Montenegro, North Macedonia, Malta, Netherlands, Norway, Poland, Portugal, Romania, Serbia, Slovenia, Slovakia, Spain, Switzerland, Turkey, United Kingdom, United States of America, Canada, Russian Federation, Azerbaijan, Uzbekistan, Ukraine, Kyrgyzstan, Kazakhstan, Tajikistan, Georgia, Turkmenistan, Vietnam, Indonesia, Bahrain, Kuwait, Oman, Qatar, KSA, UAE, South Africa, Hongkong/Taiwan (LPR only), Australia/New Zealand (LPR only), Peru/Columbia (LPR only), Liechtenstein, Mexico, Moldova, Monaco, San Marino, Sweden, Croatia, Czech Republic, Gibraltar, Israel, Kosovo, Macedonia, Mongolia
Integration Options	JSON over HTTP, UTMC 1, UTMC 2, NVR, Wisenet WAVE
VMS Support	Wisenet WAVE, Wisenet SSM, Genetec Security Center, Milestone Xprotect, Genetec AutoVu
